Rabbit polyclonal antibody to SARS-CoV2 S-protein (ACE2 binding domain)
Fig 1 :Immunofluorescent analysis of HEK293 cells transfected with pCI-Neo-Mod vector (5) including DNA encoding the SARS-CoV2 S-protein ACE2 binding domain, amino acids 308-541 in the S-protein sequence in Wuhan-Hu-1, complete genome. This region was used as the immunogen for development of rabbit antibody RPCA-SARS-CoV2-bd. The antibody was used at a dilution 1:3,000, shown in red. Cells costained with mouse mAb to β-tubulin, dilution 1:5,000, in green. The blue is Hoechst staining of nuclear DNA. The SARS-CoV2-bd antibody cleanly reveals expression of the SARS-CoV2-bd protein only in transfected cells. The β-tubulin antibody produces strong staining of microtubules in the cytoplasm in both transfected and non-transfected cells.
Roll over image to zoom in
|Amount :||100 µL|
|Content :||Purified antibody at 1mg/mL in 50% PBS, 50% glycerol plus 5mM NaN3|
|Storage condition :||Store at 4°C for short term, for longer term at -20°C. Avoid freeze / thaw cycles.|
|AA sequence :||MHHHHHHSSG LVPRGSGMKE TAAAKFERQH MDSPDLGTDD DDKAMADIGS EFVEKGIYQT 60 SNFRVQPTES IVRFPNITNL CPFGEVFNAT RFASVYAWNR KRISNCVADY SVLYNSASFS 120 TFKCYGVSPT KLNDLCFTNV YADSFVIRGD EVRQIAPGQT GKIADYNYKL PDDFTGCVIA 180 WNSNNLDSKV GGNYNYLYRL FRKSNLKPFE RDISTEIYQA GSTPCNGVEG FNCYFPLQSY 240 GFQPTNGVGY QPYRVVVLSF ELLHAPATVC GPKKSTNLVK NKCVNF 286 Number of amino acids: 286 Molecular weight: 32074.01|
This antibody was raised against a recombinant construct of the SARS-CoV-2 spike or S-protein which includes the entire region which interacts with ACE2. The specific binding to ACE2 is essential for viral internalization and infection. We designed this construct based on amino acids 308-541 in the S-protein sequence in Isolate Wuhan-Hu-1, complete genome. This is a defined globular domain recently shown to include all of the amino acids necessary for ACE2 binding. The construct was expressed in and purified from E. coli and includes an N-terminal His-tag and other vector derived sequence shown underlined below. Amino acids which interact directly with the ACE2 protein are printed in bold.

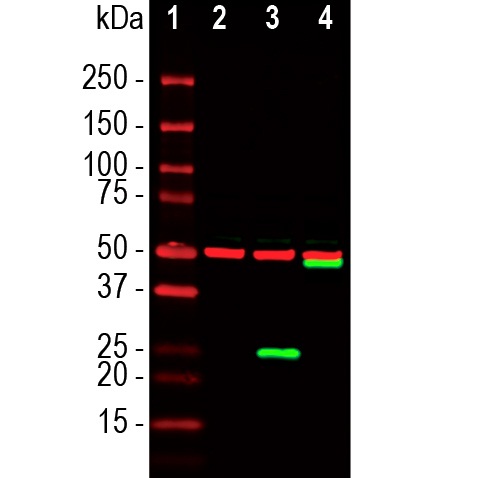

WB: 1:1,000-1:2,000. ICC/IF: 1:3,000-5,000
For Research Use Only. Not for use in diagnostic/therapeutics procedures.
